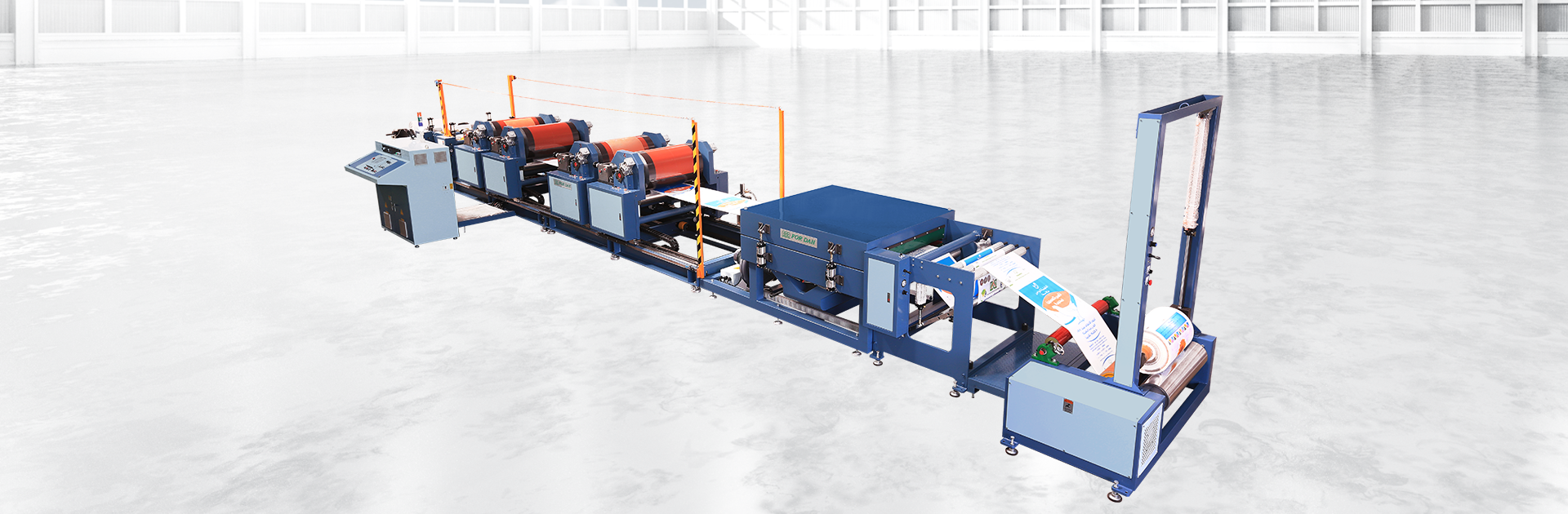

Flexographic Single Side 4~6 Color Roll to Roll Printing Machine (Direct Printing)

R400 Series

The machine is applied for solvent-based ink and direct printing method without changing plate cylinder for printing PP woven bag with/without lamination. The printing quality is more beautiful with simple CMYK color combination than piece to piece printing.

Features

  • No need to change plate cylinder if the bag length is different.
  • Available to print double side by two times with printing tracking system to match the position.
  • Fully digitalized control setting on operator-friendly human machine interface (HMI).
  • Independent hot air oven to dry the front side and back side of woven cloth at one time.
Cubic Differential Transmission

Cubic Differential Transmission

Printing Mark Sensor

Printing Mark Sensor

Manual Printing Registration System without Stopping M/C

Manual Printing Registration System without Stopping M/C

Auto. Ink Pump Circulation

Auto. Ink Pump Circulation

Select Your Model

Model
No. of Color
Max. Web Width
Max. Printing Width
Printing Repeat
Max. Printing Speed
Max. Roll Diameter
4+0
970 mm
950 mm
300~1400 mm
50 pcs/min
∮1300 mm

Included Device

  • Colored Touch Screen Type Industrial Computer Operation System (HMI) x 1 set
  • Electronic Control System
  • Pneumatic Control System
  • Auto. Ink Pump Circulation: (Quantity depends on printing color)
  • Auto. Web Guiding System Before Printing x 1 set
  • Auto. Hydraulic System for Separating Ink Roller and Anilox Roller x 1 set
  • Manual Printing Registration System without Stopping Machine
  • Plate Cylinder: (Quantity depends on printing color)
  • Viscosity Test Cup (Manual) x 1 pc

Optional Device
