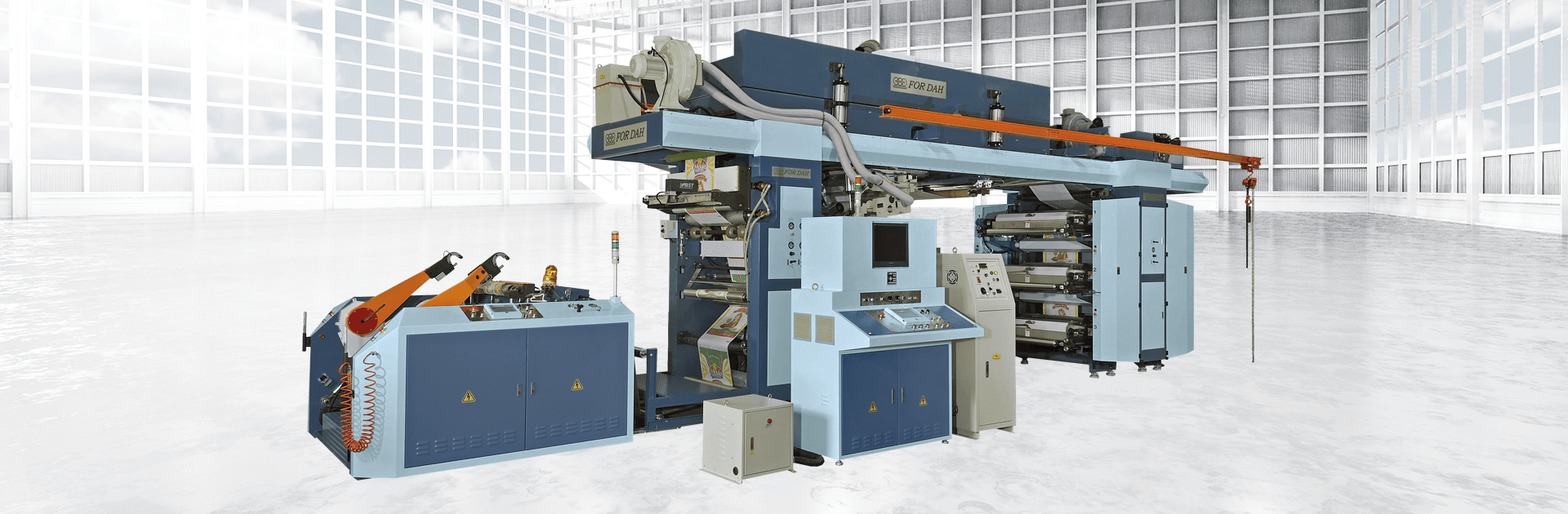

Flexographic Roll to Roll 4~6 Color Printing Machine with Single Printing Stack (Direct Printing)

900W Series (120M)

Max. machine speed: 120M/Min.
Standard including: Corona treatment

The flexographic roll to roll 4~6 color printing machine is applied for solvent-based ink and direct printing method for PP woven bag with/without lamination. Available for CMYK color combination to obtain realistic printing quality to enhance packing value.

Features

  • Steel made plate cylinder in each printing station decides the length of bag. Request to change plate cylinder when bag length is different.
  • Simple color registration mechanism to ensure accurate printing quality.
  • Equipped with Auto. Tension Controller and magnetic powder brake to regulate even tension prior printing.
  • With Web Guiding Device to control the edge position for varying web width.
  • Driven by timing belt for quiet running and precise transmission.
  • With auto. ink circulation device to maintain uniform ink viscosity giving good printing quality.
  • Available Double deck oven facility provides excellent drying quality at high speed.
  • Fully digitalized control setting on operator-friendly human machine interface (HMI).
  • High-Tech Doctor Blade with ceramic roller upon to customer’s request to remove the excess ink for the highest printing job.
  • Available to have Auto. Roller Changer for rewinder to slice fabric roll on continuous operation, regulates the constant fabric tension, and auto. position rectification for evenly and tidily winding.
Auto. Roller Changing System

Auto. Roller Changing System

Feed-In Device (Control by Servo)

Feed-In Device (Control by Servo)

Non-Stop Roller Exchanging System for Unwinder

Non-Stop Roller Exchanging System for Unwinder

Auto. Ink Viscosity Controlling Machine

Auto. Ink Viscosity Controlling Machine

Auto. Tension Controller

Auto. Tension Controller

Cleaning Brush before Printing

Cleaning Brush before Printing

Manual Printing Registration System without Stopping M/C

Manual Printing Registration System without Stopping M/C

Plate Mounting Machine

Plate Mounting Machine

Select Your Model

Model
No. of Color
Web. Width
Printing Width
Printing Repeat
Max. Machine Speed
Max. Printing Speed
4 6
950 mm 950 mm
900 mm 900 mm
350~1200 mm 350~1200 mm
120M/Min 120M/Min
Single Side: 60~100M/Min, Double Side: 50~80M/Min Single Side: 60~100M/Min, Double Side: 50~80M/Min

Included Device

  • Double Side Corona Treatment Device
  • Colored Touch Screen Type Industrial Computer Operation System (HMI)
  • Auto. Ink Pump Circulation (Manual Type) x 4 or 6 sets
  • Auto. Web Guiding System x 1 set
  • Auto. Tension Control (Control by Powder Brake and Load Cell)
  • Auto. Hydraulic System for Separating Ink Roller and Anilox Roller
  • Manual Printing Registration System without Stopping Machine
  • Chromium Plated Surface Anilox Roller 200~300 LPI x 4 or 6 pcs (By the customer’s request)
  • Manual Type Hoist for Printing Cylinder Changing and Fabric Roll Loading x 1 set
  • Plate Cylinder Fixed on the Machine x 4 or 6 pcs (By the customer’s request)
  • Static Elimination Brush x 2 pcs

Optional Device
