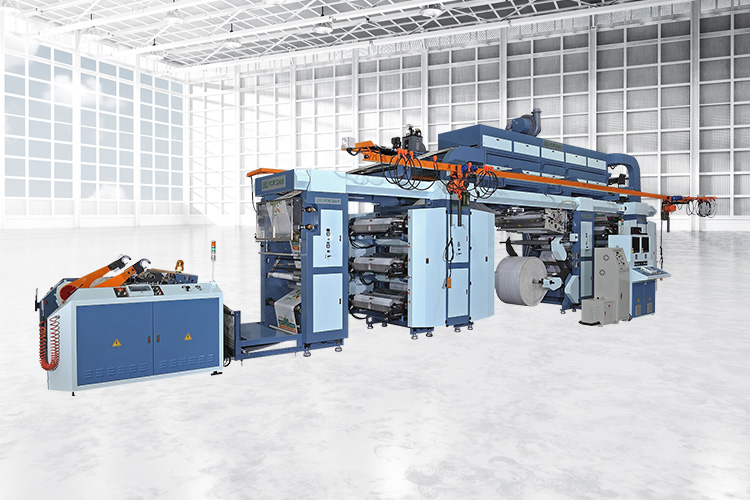

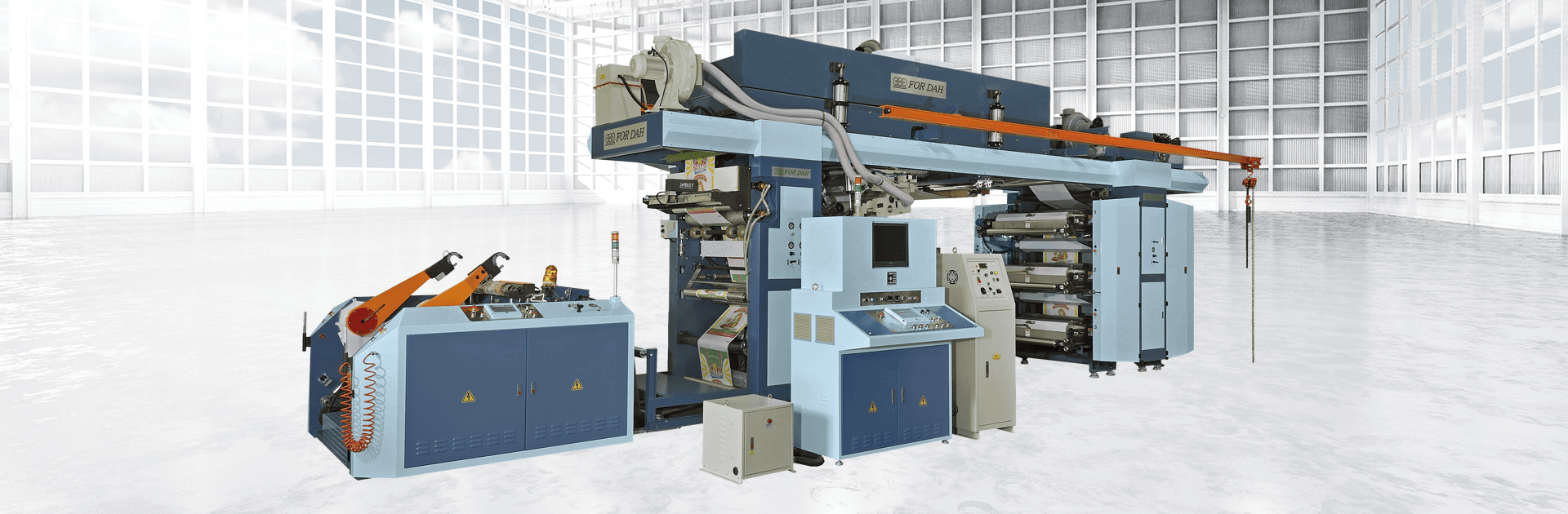

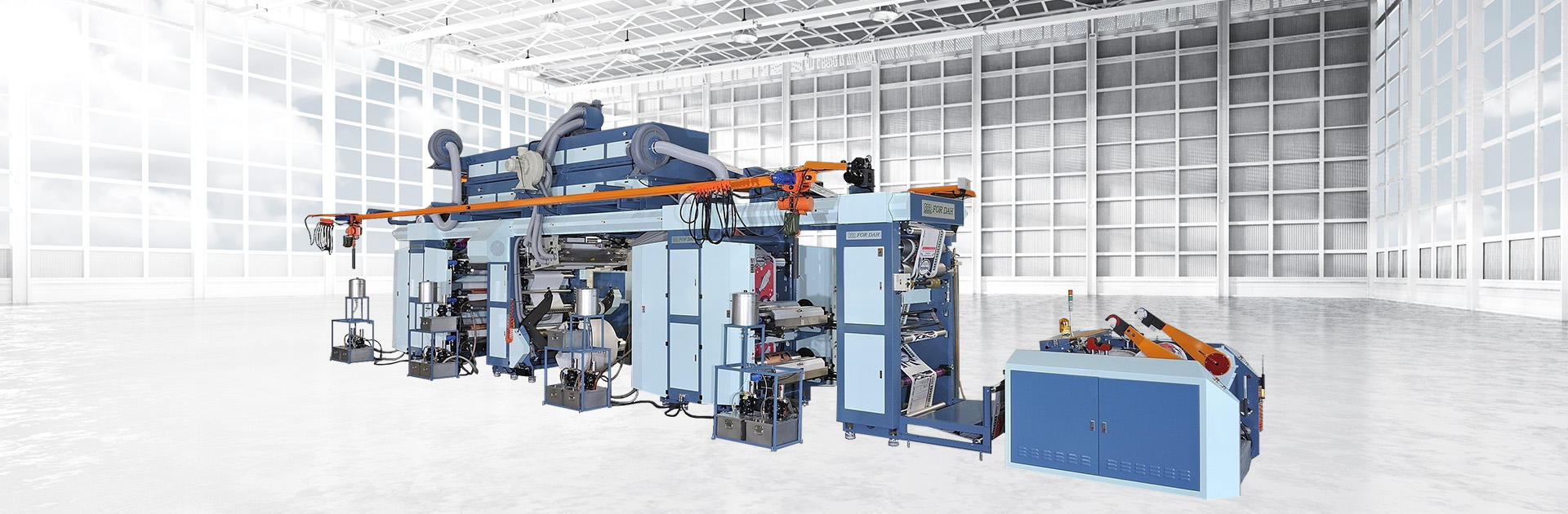

High Speed Flexographic Printing Machine | Roll to Roll 6~12 Color Direct Printing Machine with 2 Printing Stack

900W series (180M)

Max. machine speed: 180M/Min.
Standard features include: Non-stop Un-winder, Auto Re-winder, out-feed by servo control, and Corona treatment.

Our high-speed flexographic printing machine, designed for roll to roll 6~12 color direct printing, is ideal for solvent-based ink applications on PP woven bags, with or without lamination. It supports CMYK color combinations to achieve realistic printing quality, enhancing the packaging value.

Features

Steel Plate Cylinder: Each printing station features a steel plate cylinder determining the bag length. Plate cylinders can be changed to accommodate different bag lengths.
Accurate Color Registration: Simple color registration mechanism ensures precise printing quality.
Automatic Tension Control: Equipped with an Automatic Tension Controller and magnetic powder brake to maintain even tension before printing.
Web Guiding Device: Controls edge position for varying web widths, ensuring consistent alignment.
Quiet and Precise Transmission: Driven by a timing belt for smooth and accurate operation.
Automatic Ink Circulation: Maintains uniform ink viscosity for high-quality printing.
Double Deck Oven: Provides excellent drying quality at high speeds.
User-Friendly Interface: Fully digitalized control settings on an operator-friendly human-machine interface (HMI).
High-Tech Doctor Blade: Features a ceramic roller to remove excess ink for superior printing quality, available upon customer request.
Automatic Roller Changer: Facilitates continuous operation by slicing fabric rolls, regulating constant fabric tension, and ensuring even and tidy winding.

Auto. Roller Changing System

Cooling Roller & Rotating Joints

Still Print Imaging System

Chamber System

Feed-In Device (Control by Servo)

Non-Stop Roller Exchanging System for Unwinder

Auto. Ink Viscosity Controlling Machine

Auto. Tension Controller

Cleaning Brush before Printing

Manual Printing Registration System without Stopping M/C

Plate Mounting Machine

Select Your Model

Model
No. of Color
Web. Width
Printing Width
Printing Repeat
Max. Machine Speed
Max. Printing Speed

Model	906-90W	908-90W	910-90W	912-90W
No. of Color	6 (4+2)	8 (4+4)	10 (5+5)	12 (6+6)
Web. Width	950 mm	950 mm	950 mm	950 mm
Printing Width	900 mm	900 mm	900 mm	900 mm
Printing Repeat	350~1200 mm	350~1200 mm	350~1200 mm	350~1200 mm
Max. Machine Speed	180M/Min	180M/Min	180M/Min	180M/Min
Max. Printing Speed	Single Side: 80~150M/Min, Double Side: 70~130M/Min	Single Side: 80~150M/Min, Double Side: 70~130M/Min	Single Side: 80~150M/Min, Double Side: 70~130M/Min	Single Side: 80~150M/Min, Double Side: 70~130M/Min

Included Device

Double Side Corona Treatment Device
Colored Touch Screen Type Industrial Computer Operation System (HMI)
Auto. Ink Pump Circulation (Manual Type)
Auto. Web Guiding System x 2 sets
Auto. Tension Control (Control by Powder Brake and Load Cell)
Auto. Hydraulic System for Separating Ink Roller and Anilox Roller
Manual Printing Registration System without Stopping Machine
Chromium Plated Surface Anilox Roller 200~300 LPI (By the customer’s request)
Manual Type Hoist for Printing Cylinder Changing and Fabric Roll Loading x 2 sets
Plate Cylinder Fixed on the Machine (By the customer’s request)
Static Elimination Brush x 2 pcs
3” / 4” Air Shaft for Unwinder and Rewinder
Non-Stop Roller Exchanging System for Unwinder
“NEW TYPE” Auto. Roller Changing System for Rewinder
Servo Control In-Feed Device
Digital Camera Monitoring (6 cameras)

Optional Device

8” Sleeve for Unwinder and Rewinder Cooling Roller with Rotary Joints Still Print Imaging System (Video Camera for Printing Control) for Front Side Printing (Made in Germany) Ink Viscosity Controller Central Position Controller (CPC) Doctor Blade System (Chamber System) with Ceramic Roller Plate Mounting Machine
